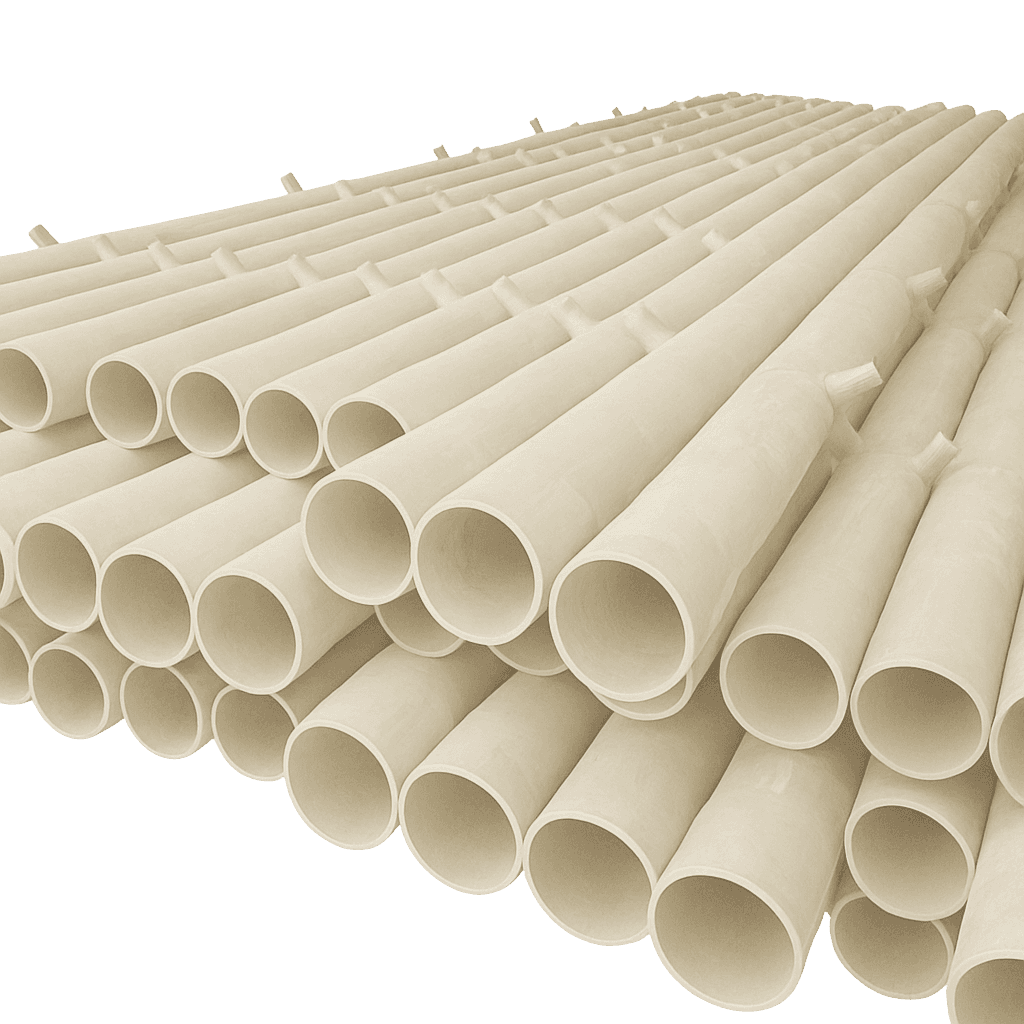

+971 50 184 2075White Header Pipe

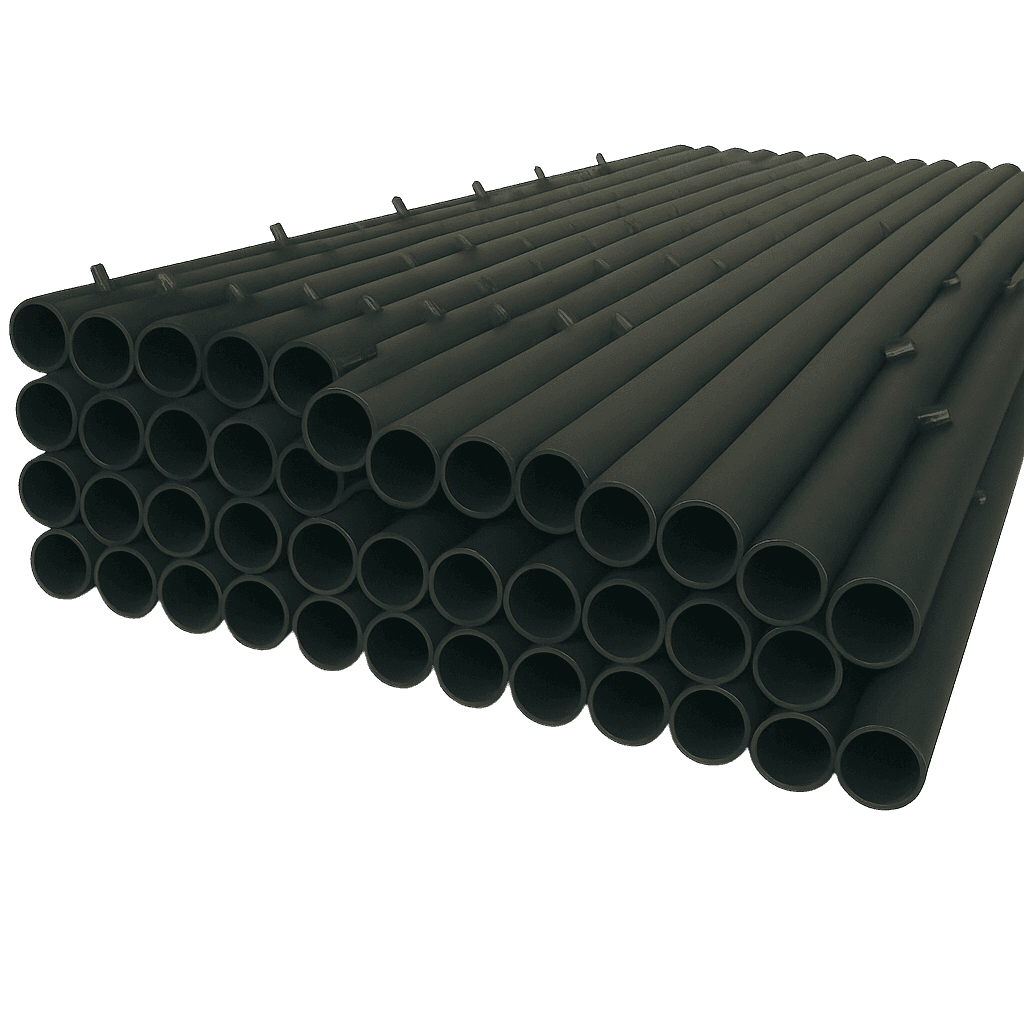

Black Header Pipe
Our Header Pipe is specially designed for WellPoint dewatering systems, acting as the main line to collect and channel water from multiple wellpoints to pumps. Made from high-quality PVC or HDPE, it ensures durability, corrosion resistance, and efficient water flow, providing reliable performance in construction and excavation dewatering projects.
Applications
Used as a main distribution line in dewatering systems to collect and discharge water from multiple wellpoints.
Ideal for connecting wellpoint assemblies and directing suction flow to pumps.
Commonly used in construction and excavation sites for groundwater control.
Suitable for irrigation and water supply networks as a central header line.
Used in industrial and municipal drainage systems for efficient water management.
Supports temporary or permanent piping setups in dewatering operations.
Compatible with PVC, HDPE, or metal fittings for easy installation and maintenance.
Product Specification
Product Name : UPVC Header Pipe
Material : Unplasticized Poly Vinyl Chloride (UPVC)
Process : Extrusion Process
Outer Dia : 68mm & 160mm
Pressure : 10 Bar Approx.
Length : 6mtr, 3mtr, 2mtr & 1mtr
Wall Thickness : 6.7 to 7 MM
Color : Off White & Black
Uses : For Dewatering Purpose
Available With 6 Take Offs and One Side Socket
