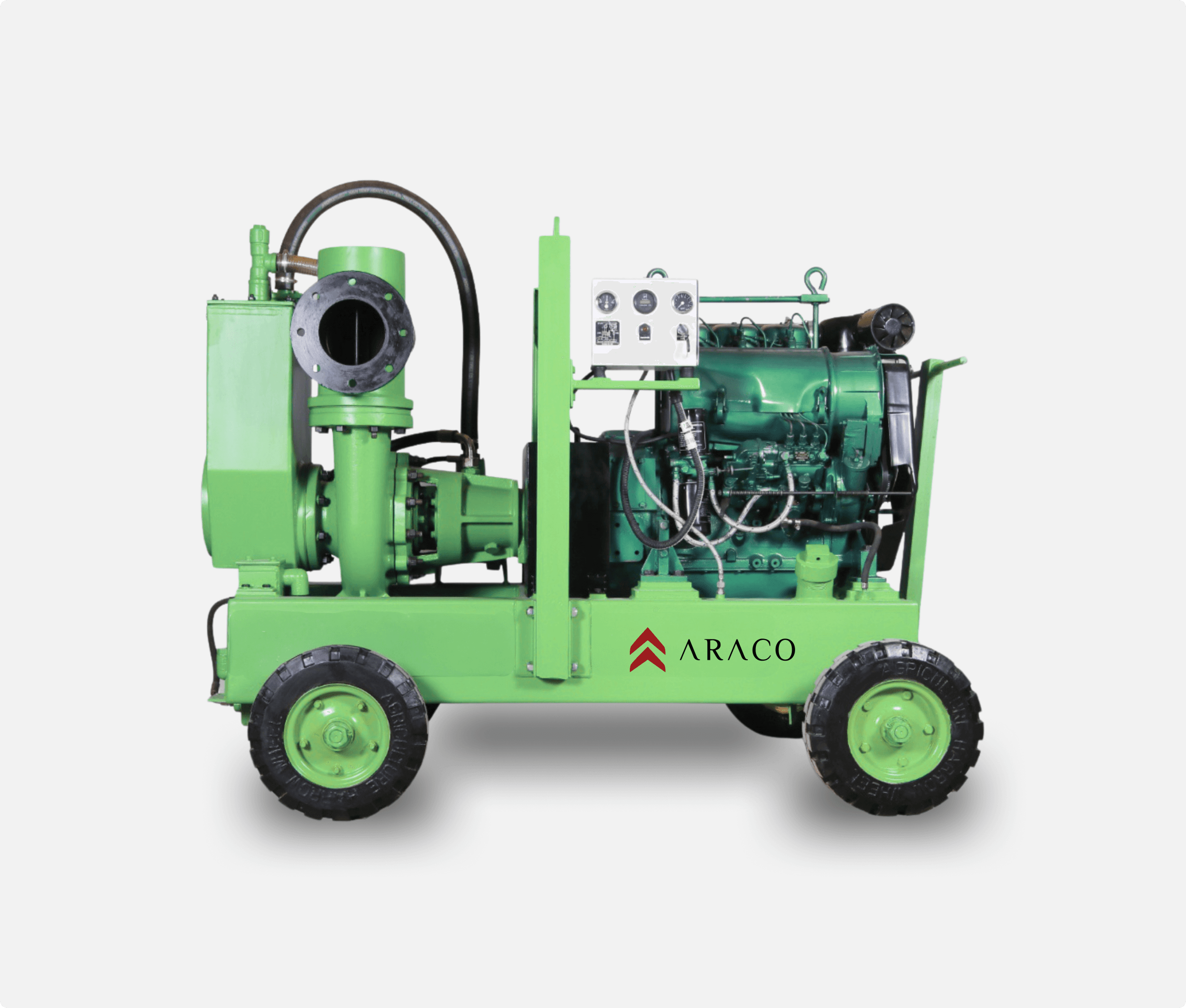

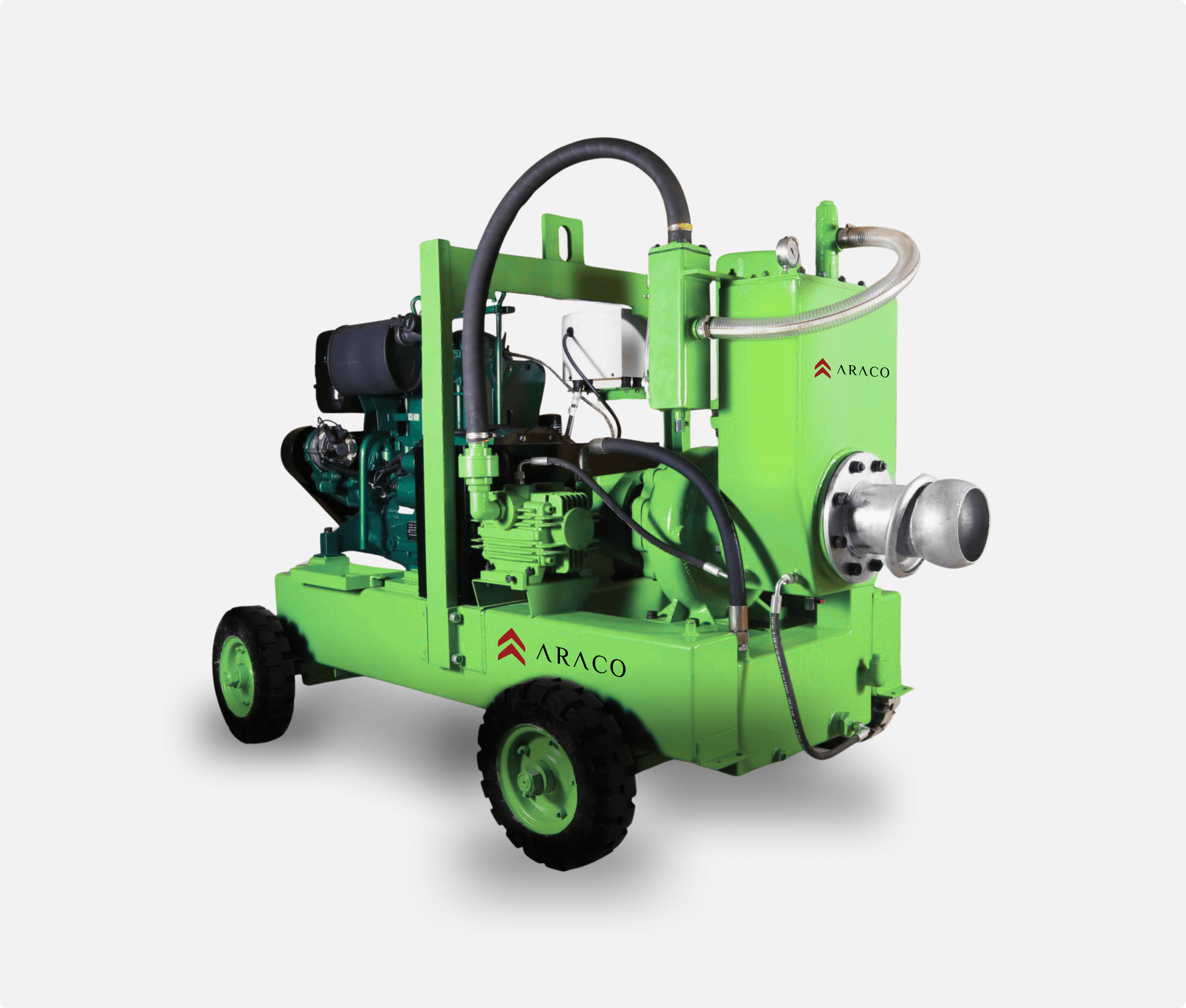

Our 6-inch Dewatering Pump is a high-performance, self-priming pump powered by a reliable Kirloskar diesel engine, designed for tough dewatering applications in construction, mining, agriculture, and municipal projects. Built for durability and efficiency, this unit ensures continuous operation even under demanding site conditions.
Operation: Water and air pump, driven by Diesel engine, air separation chamber will automatically separate air from suction line and discharge only water.
Design: Mounted on tank frame chassis (4 wheeled), movable at site (4 km/h)
Close Impeller, wear plates material: Stainless steel (in both model MS & SS)
Vacuum producer pump with oil lubrication tank.

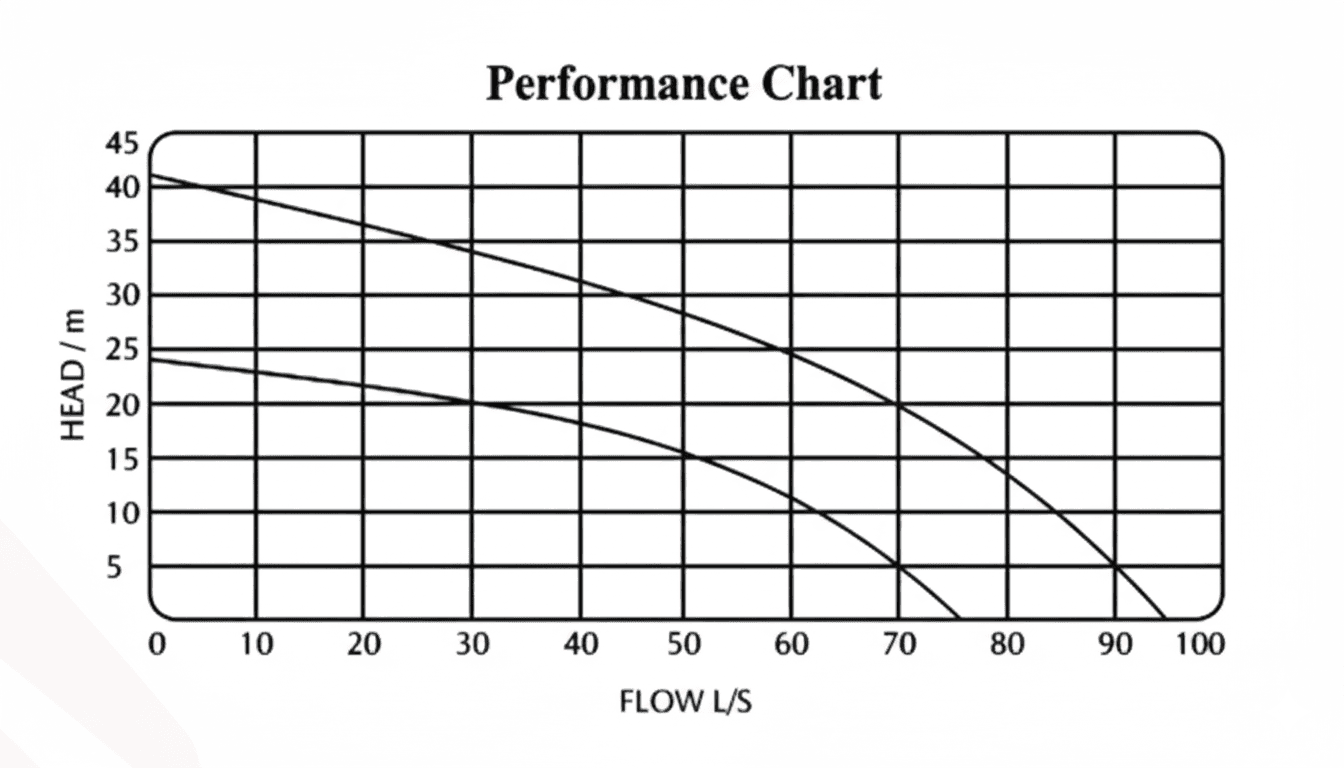

Performance: Maximum flow (400m 3/h)
Maximum Discharge Head: 42mtr. (138 ft.)
Maximum Partical Size: 25 m m (1 inch)
Pipe Connections: 6" T able D Suction and 6" T able D Discharge, Quick Couplings
Fuel Tank: Capacity: 160 Itr. 24 hour + runtime, Cleaning and flushing facilities
Engine: HA 394 Kirloskar engine, air cooled, self started.
RPM (Kw): 1500 - (23.6 Kw), 1800 - (28 Kw), 2000 - (30.2 Kw) and 2300 - (34.6 Kw.)
Priming System: Rotary V acuum Pump: 70 CFM B - T ype with oil cooling
Construction of priming tank & Discharge Head: Fabricated in both MS and SS
Shaft Seal: M e c h a n i c a l Seal with oil lubrication
Application: Construction industry, Industries, Communities Delivery of ground water and Dewatering.
Why Choose This Pump:
Proven Kirloskar reliability and service network
Efficient fuel consumption and long operational life
Designed for continuous, unattended operation
Minimal maintenance with easy access to service points
Dewatering Pump, Model AI-150
Optional Material Grade for Pump
Pump
Mild Steel Pump (MS)
Stainless Steel Pump (SS)
Volute
Pump
Stainless Steel
Discharge Head
Pump
Stainless Steel
Priming Tank
Pump
Stainless Steel
